Commercial
Zinc Plated

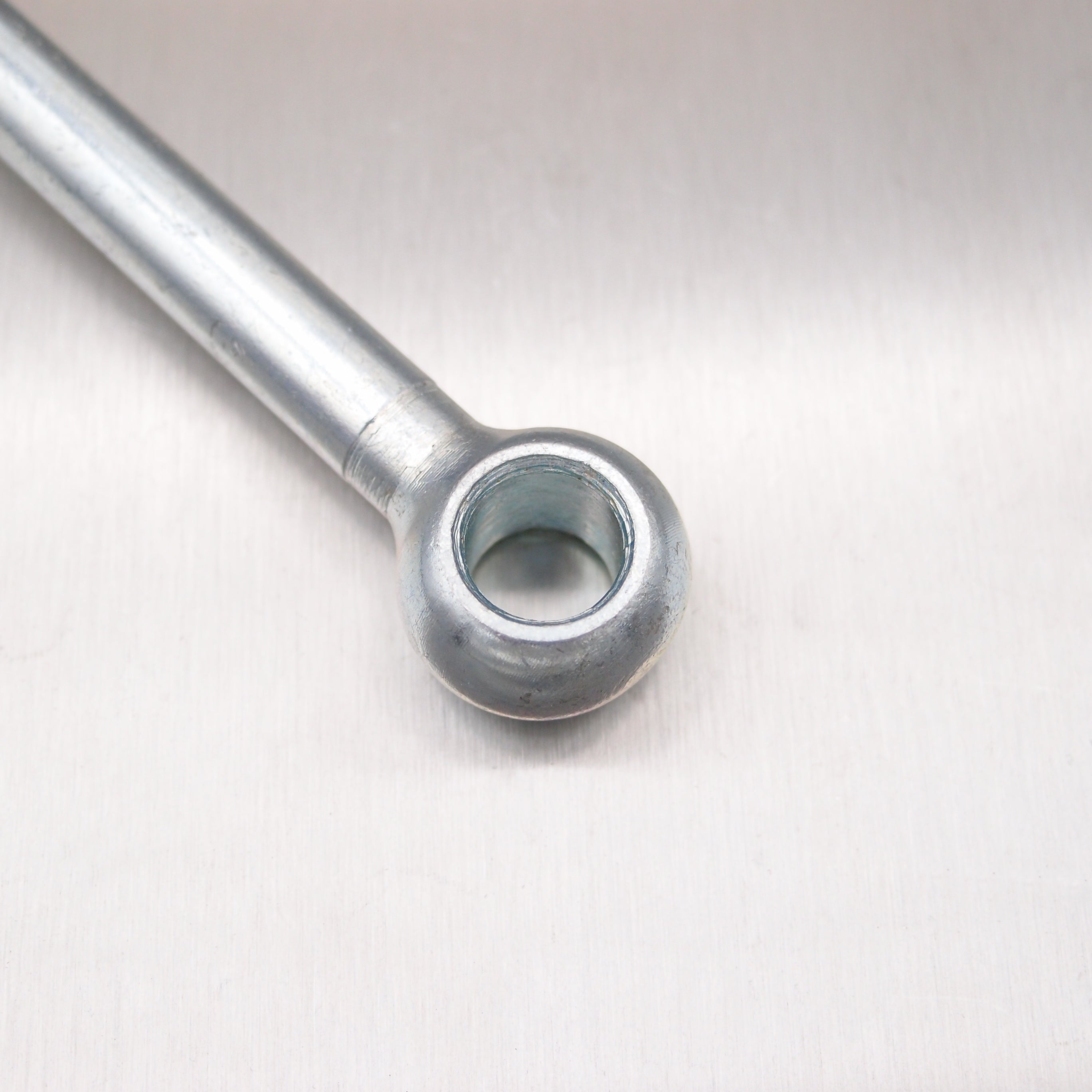

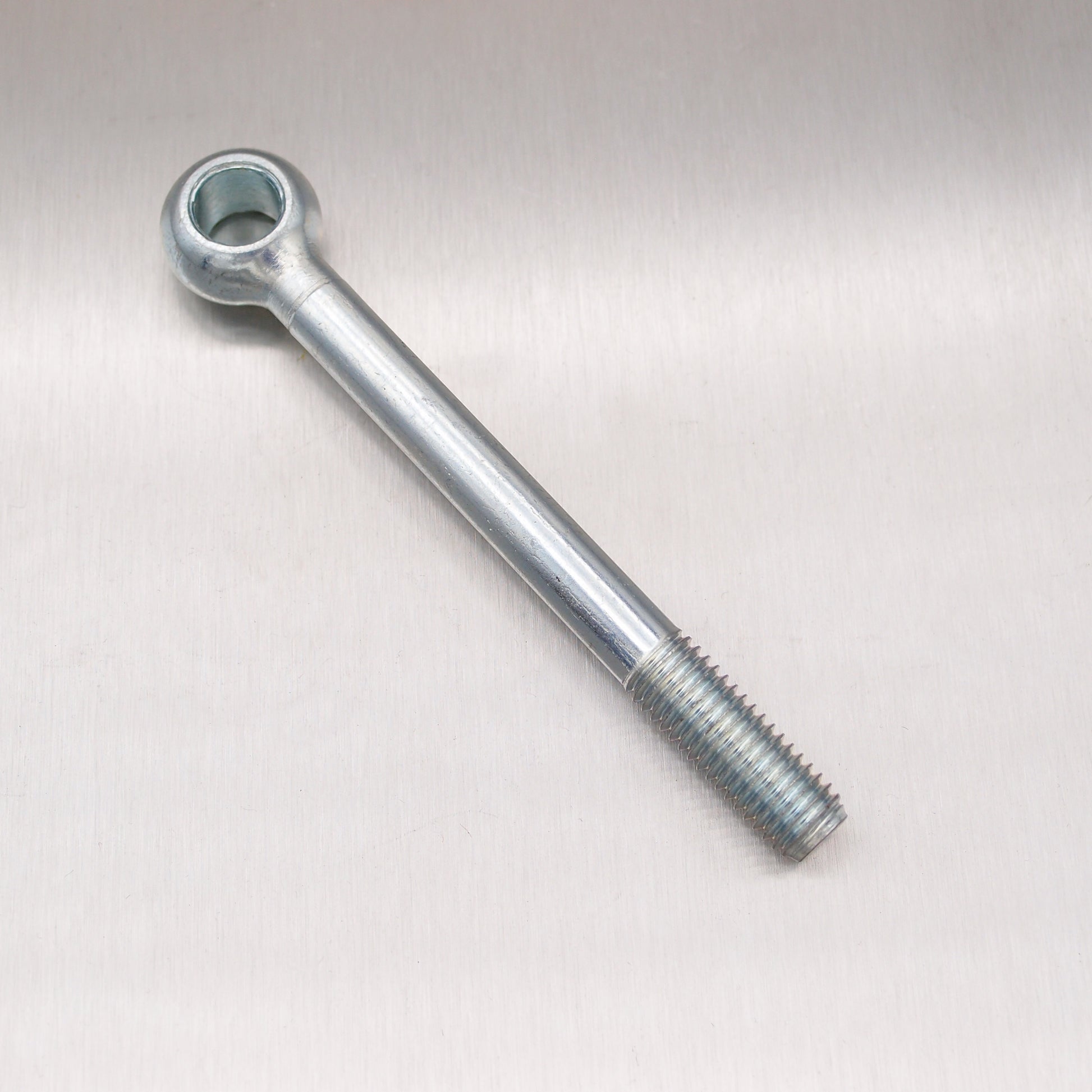

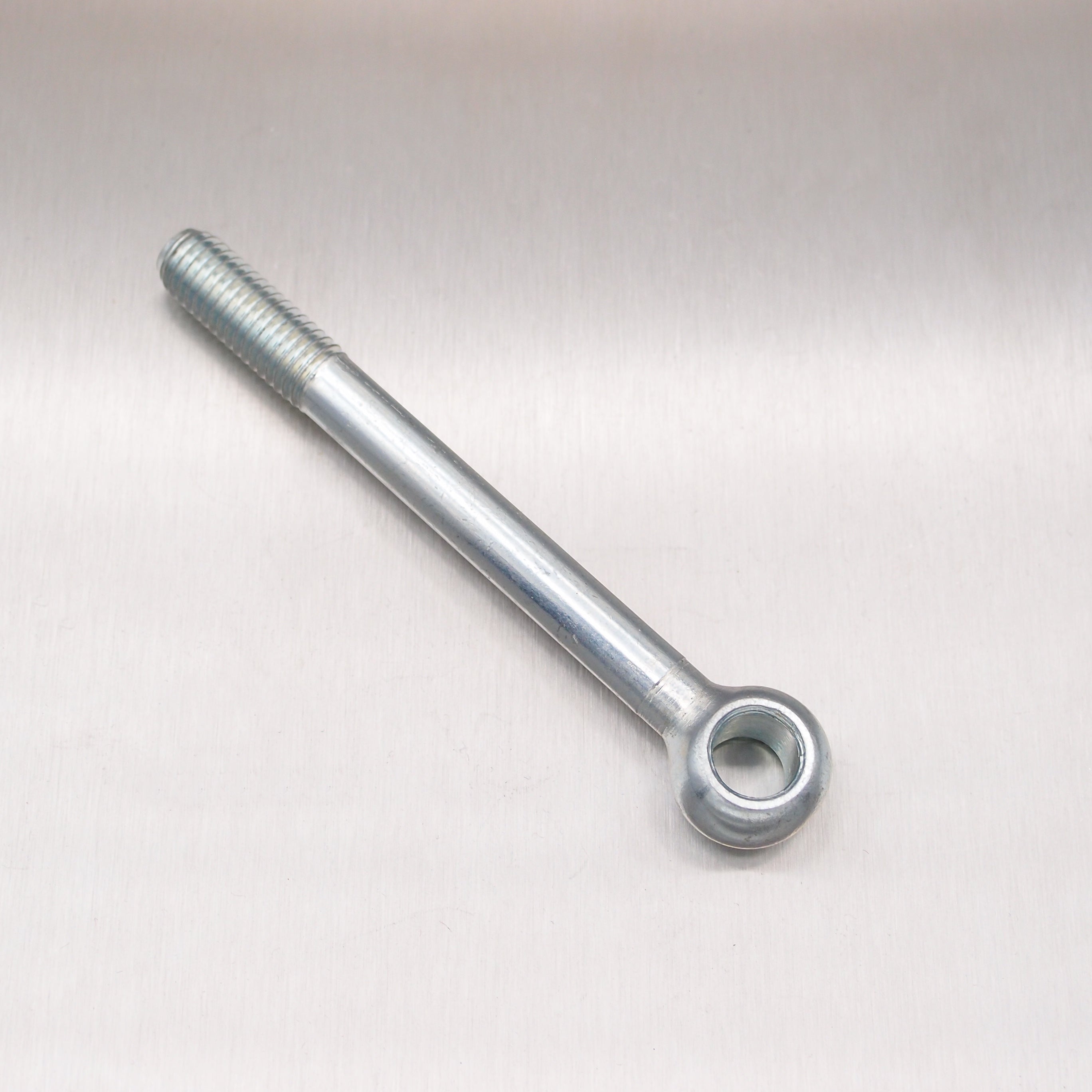

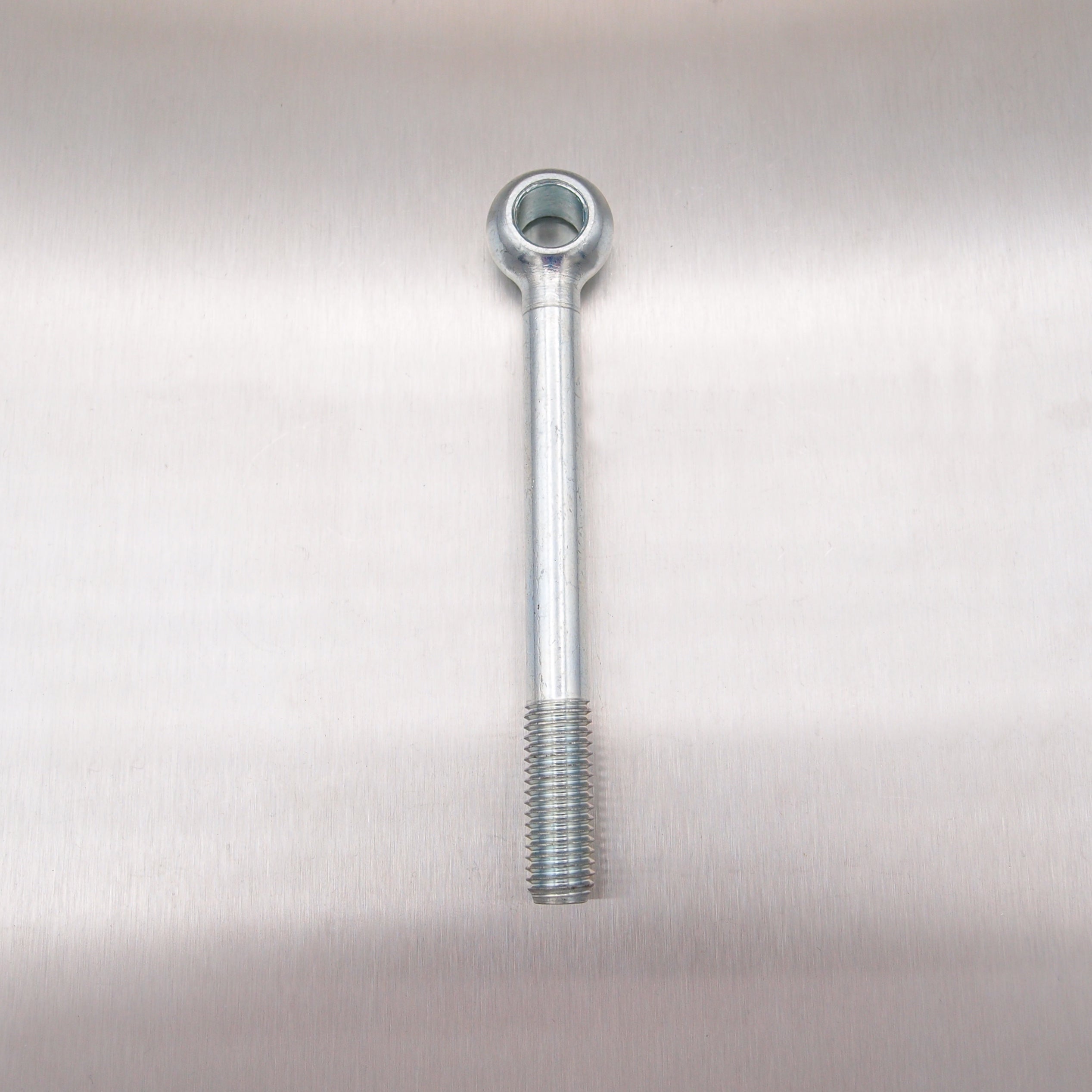

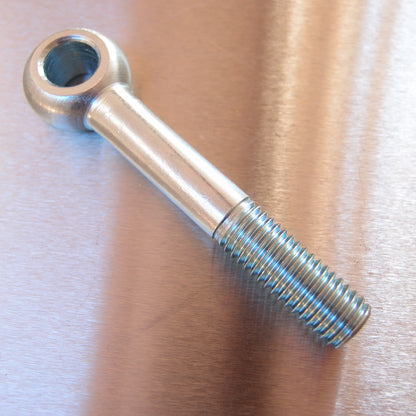

DIN444 Eyebolts Type B - Zinc plated

SKU: EBZP05025

£0.64 ex. VAT £0.77 inc. VAT
£0.64 £0.77 £0.64 £0.77 inc. VAT ex. VAT
Sale


In stock

  • Type B DIN444 swing bolts
  • Main uses include use for Jigs and fixtures on assembly equipment and connections
  • Rounded head with straight hole.
  • Metric thread
  • Zinc plated



Description

  • Type B DIN444 swing bolts
  • Main uses include use for Jigs and fixtures on assembly equipment and connections
  • Rounded head with straight hole.
  • Metric thread
  • Zinc plated




Shipping & Returns

We offer a variety of different shipping options dependent on weight, postcode and urgency. Please see our Shipping page for further details. Unused goods can be returned to us for a full refund within the terms of our Returns Policy


Support

We hope you will find all the technical information you need on our product pages, but we pride ourselves on our willingness to assist in helping you find the right product for your application and our commitment to having our customers speak to a real person, without having to wait, about any matter regarding your order. Please call us on 01460 220906 or you can contact us here. We are open Monday-Friday 9am-5pm excluding Bank Holidays.

View full details
Show Specification Drawing
Show Product Specification

For product specs, scroll the table below horizontally:

Stock Price
(inc. VAT)(ex. VAT) 		Quantity Line total
DIN444 Eyebolts Type B - Zinc plated
M5 / 25mmEBZP05025
 In stock
£0.64
£0.77
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M5 / 35mmEBZP05035
 In stock
£0.66
£0.79
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M6 / 30mmEBZP06030
 In stock
£0.78
£0.94
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M6 / 50mmEBZP06050
 In stock
£0.86
£1.03
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M6 / 80mmEBZP06080
 In stock
£0.88
£1.06
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M8 / 40mmEBZP08040
 In stock
£0.92
£1.10
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M8 / 50mmEBZP08050
 In stock
£1.04
£1.25
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M8 / 80mmEBZP08080
 In stock
£1.26
£1.51
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M8 / 100mmEBZP08100
 In stock
£1.29
£1.55
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M10 / 40mmEBZP10040
 In stock
£0.94
£1.13
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M10 / 50mmEBZP10050
 In stock
£1.09
£1.31
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M10 / 80mmEBZP10080
 In stock
£1.34
£1.61
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M10 / 100mmEBZP10100
 In stock
£1.44
£1.73
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M10 / 140mmEBZP10140
 Out of stock
£1.74
£2.09
Email me when back in stock
 		£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M12 / 50mmEBZP12050
 In stock
£1.19
£1.43
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M12 / 70mmEBZP12070
 In stock
£1.58
£1.90
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M12 / 80mmEBZP12080
 In stock
£1.68
£2.02
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M12 / 100mmEBZP12100
 In stock
£1.78
£2.14
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M12 / 140mmEBZP12140
 In stock
£2.36
£2.83
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M16 / 60mmEBZP16060
 In stock
£2.02
£2.42
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M16 / 100mmEBZP16100
 In stock
£2.52
£3.02
£0.00 £0.00
DIN444 Eyebolts Type B - Zinc plated
M16 / 150mmEBZP16150
 In stock
£3.34
£4.01
£0.00 £0.00

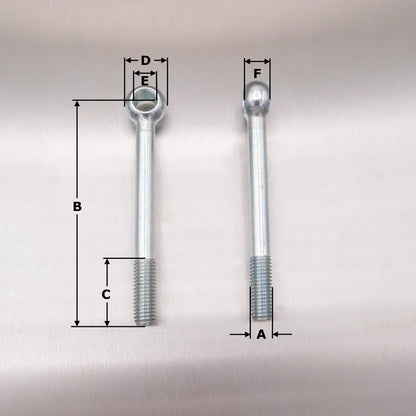

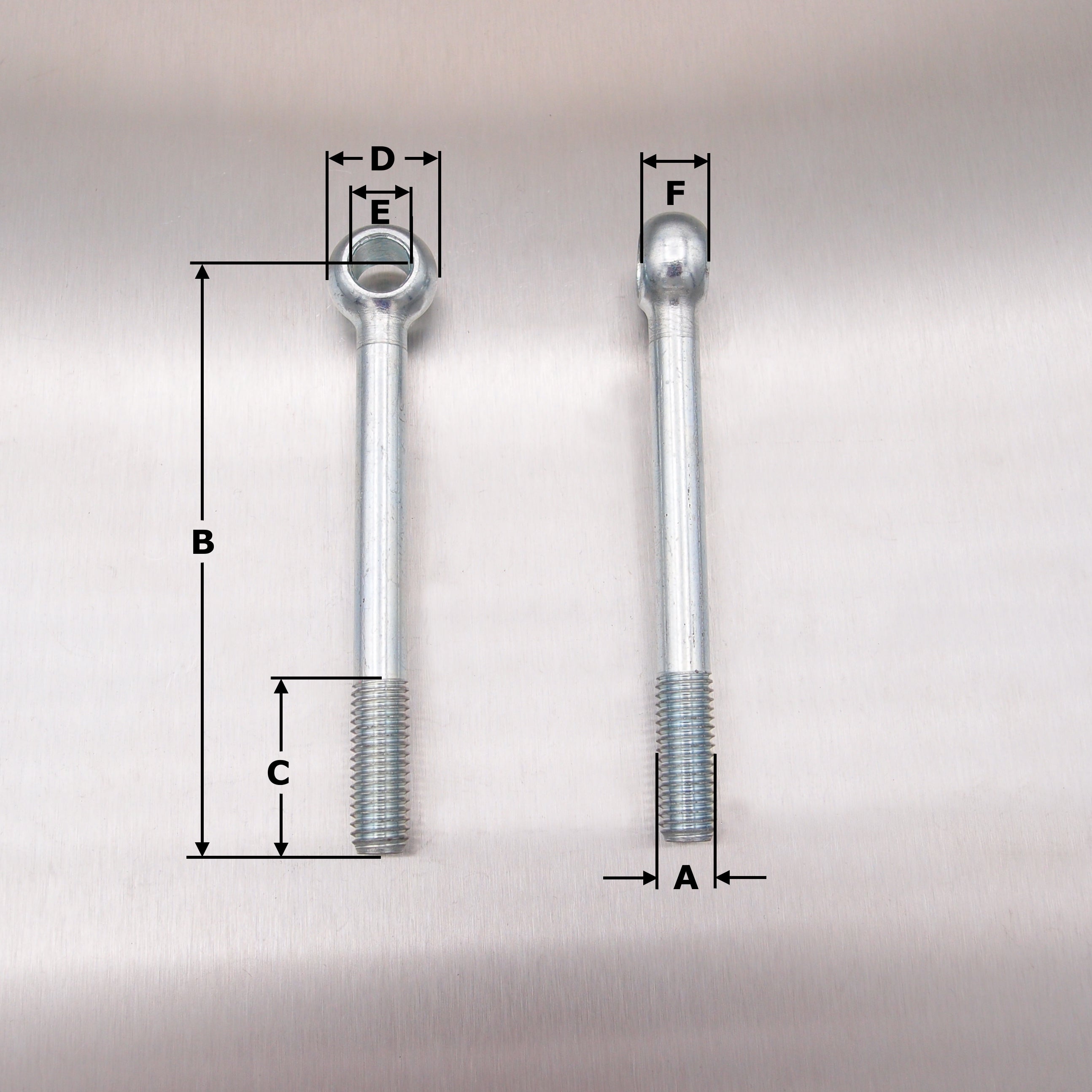

Weight (kg) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
0.006 M5 25 16 12 5.2 6
0.007 M5 35 16 12 5.2 6
0.009 M6 30 18 14 6.2 7
0.016 M6 50 19 14 6 7
0.026 M6 80 19 14 6 7
0.021 M8 40 22 18 8 9
0.025 M8 50 22 18 8.1 9
0.037 M8 80 23 18 8.2 9
0.046 M8 100 22 18 8.2 9
0.030 M10 40 26 20 10 12
0.036 M10 50 26 20 10 12
0.050 M10 80 26 20 10 12
0.060 M10 100 26 20 10.2 12
0.080 M10 140 32 20 10.2 12
0.060 M12 50 30 25 12.2 14
0.075 M12 70 30 25 12.1 14
0.082 M12 80 30 25 12 14
0.093 M12 100 30 25 12 14
0.120 M12 140 36 25 12.1 14.7
0.100 M16 60 38 32 16.1 17
0.171 M16 100 38 32 16.1 17
0.237 M16 150 44 32 16.1 17
View Cart Checkout Now
0

Total items

£0.00

Product subtotal

VAT and shipping calculated at checkout
View cart
View cart

Service is our priority

VAT invoices are supplied with every order

Commercial Product

This is a commercial product. Commercial products have no loadings and do not come with any C of C or lifting certification. Please do not use commercial products for any lifting operation.

NOT TO BE USED FOR LIFTING

Zinc Plated

Zinc plating is a electro plated layer of zinc which helps form a corrosion preventative layer to the surface. This type of coating is less protective than galvanising but does have the benefit of a smooth semi-shiny finish. This finish is quite often selected for decorative applications.
