Tested
Galvanised

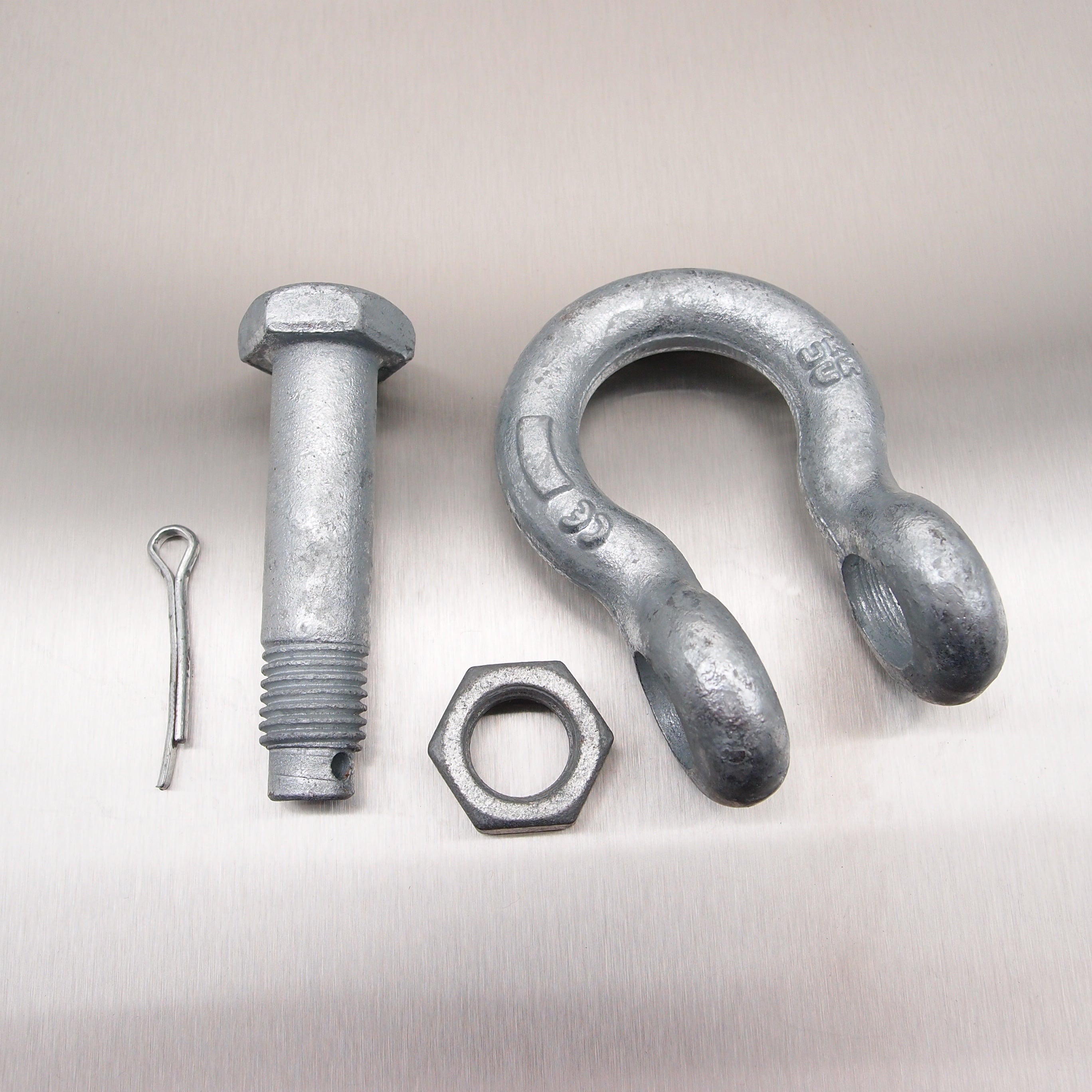

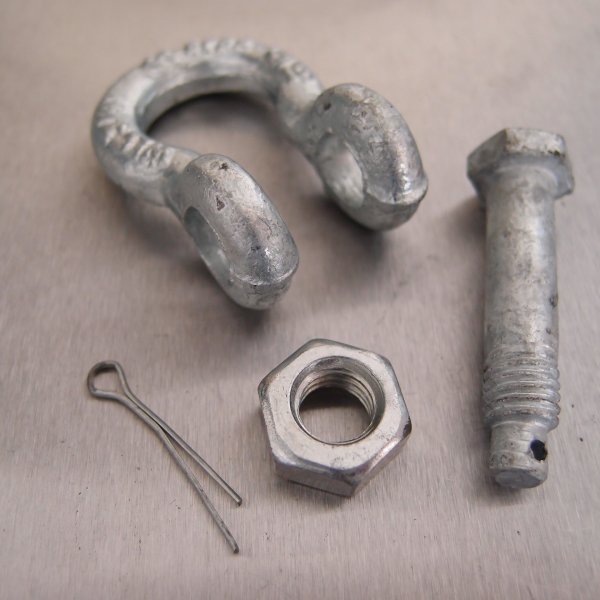

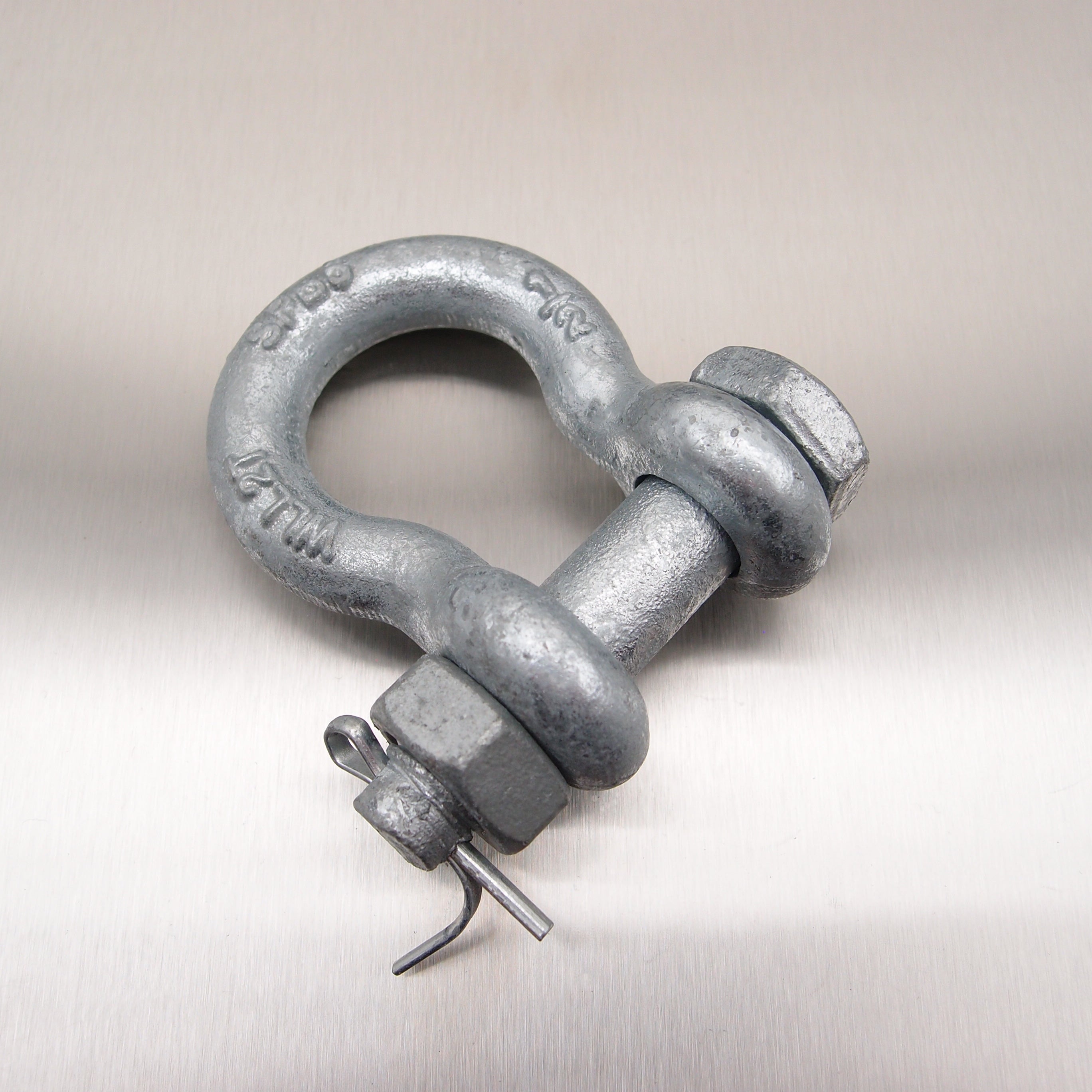

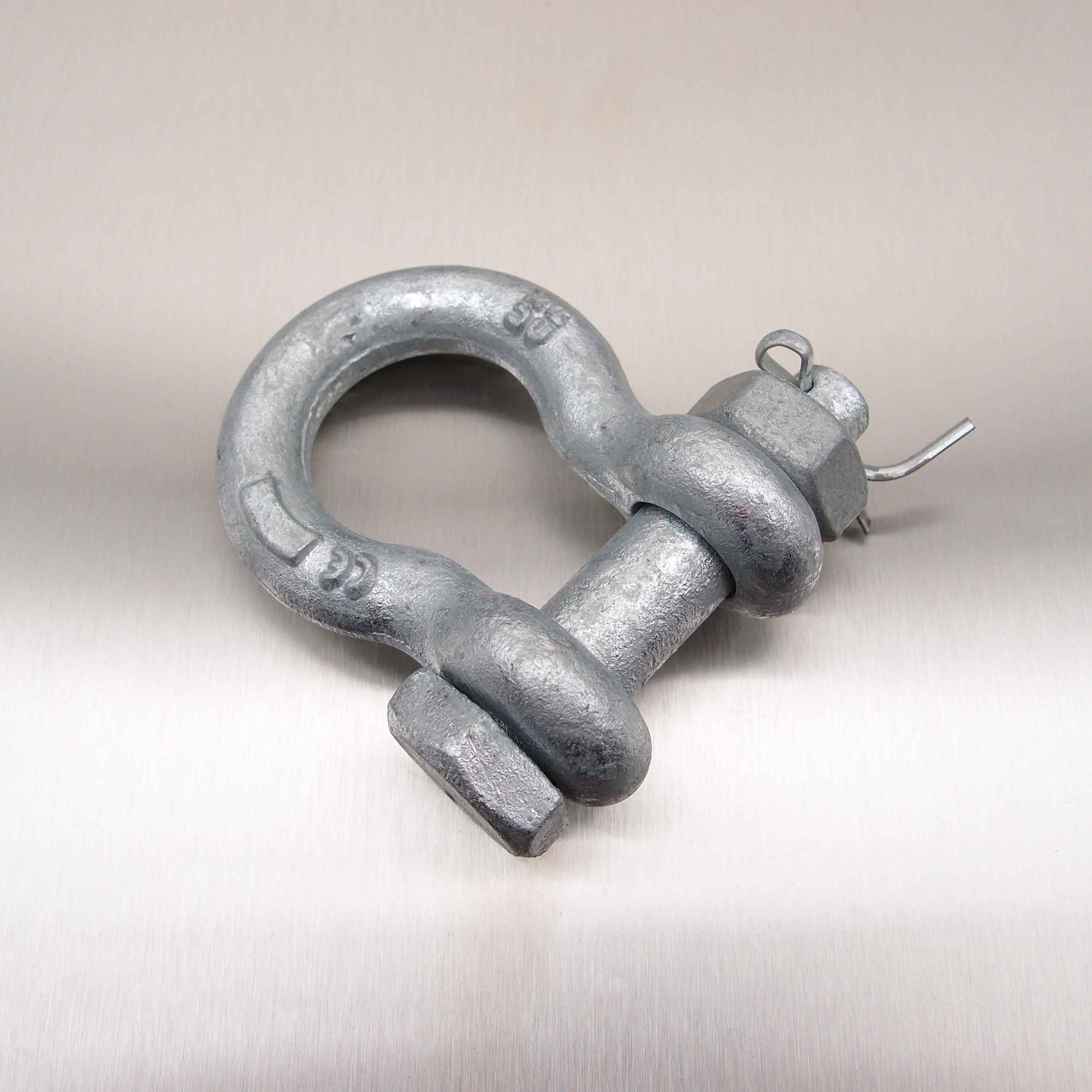

Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow

SKU: USSAB0.75

£1.62 ex. VAT £1.94 inc. VAT
£1.62 £1.94 £1.62 £1.94 inc. VAT ex. VAT
Sale


In stock

  • Tested for lifting
  • Alloy steel
  • Galvanised

Description

  • Tested for lifting
  • Alloy steel
  • Galvanised


Shipping & Returns

We offer a variety of different shipping options dependent on weight, postcode and urgency. Please see our Shipping page for further details. Unused goods can be returned to us for a full refund within the terms of our Returns Policy


Support

We hope you will find all the technical information you need on our product pages, but we pride ourselves on our willingness to assist in helping you find the right product for your application and our commitment to having our customers speak to a real person, without having to wait, about any matter regarding your order. Please call us on 01460 220906 or you can contact us here. We are open Monday-Friday 9am-5pm excluding Bank Holidays.

View full details
Show Specification Drawing
Show Product Specification

For product dimensions, scroll the table below horizontally:

Stock Price
(inc. VAT)(ex. VAT) 		Quantity Line total
Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow
0.75 tonneUSSAB0.75
 In stock
£1.62
£1.94
£0.00 £0.00
Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow
1 tonneUSSAB1
 In stock
£1.88
£2.26
£0.00 £0.00
Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow
1.5 tonnesUSSAB1.5
 In stock
£2.58
£3.10
£0.00 £0.00
Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow
2 tonnesUSSAB2
 In stock
£3.18
£3.82
£0.00 £0.00
Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow
3.25 tonnesUSSAB3.25
 In stock
£4.78
£5.74
£0.00 £0.00
Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow
4.75 tonnesUSSAB4.75
 In stock
£8.34
£10.01
£0.00 £0.00
Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow
6.5 tonnesUSSAB6.5
 In stock
£11.62
£13.94
£0.00 £0.00
Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow
8.5 tonnesUSSAB8.5
 In stock
£16.08
£19.30
£0.00 £0.00
Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow
9.5 tonnesUSSAB9.5
 In stock
£22.18
£26.62
£0.00 £0.00
Drop Forged - Bow Shackle US Fed Spec RR-C-271D IV - Safety Anchor Bow
12 tonnesUSSAB12
 In stock
£28.39
£34.07
£0.00 £0.00

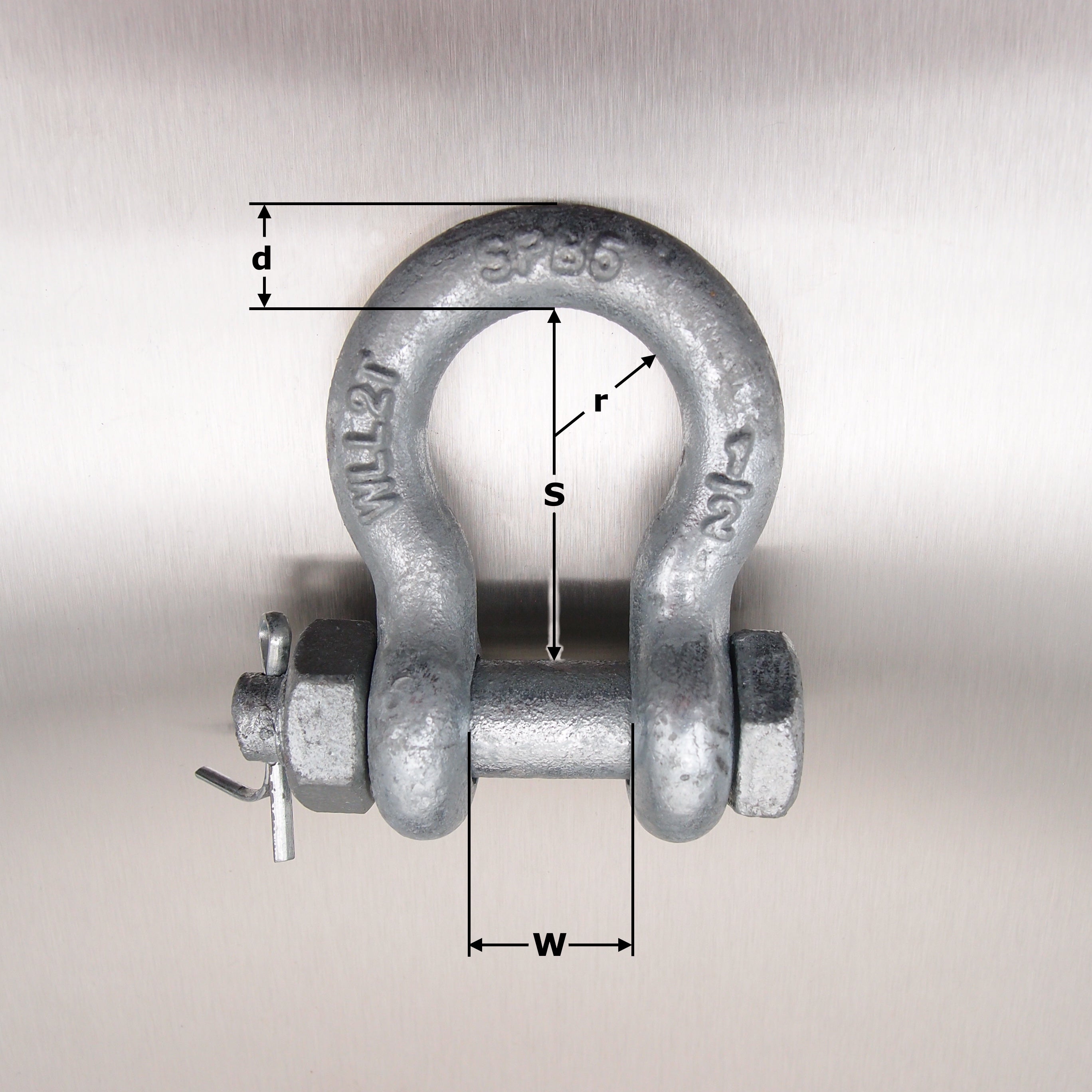

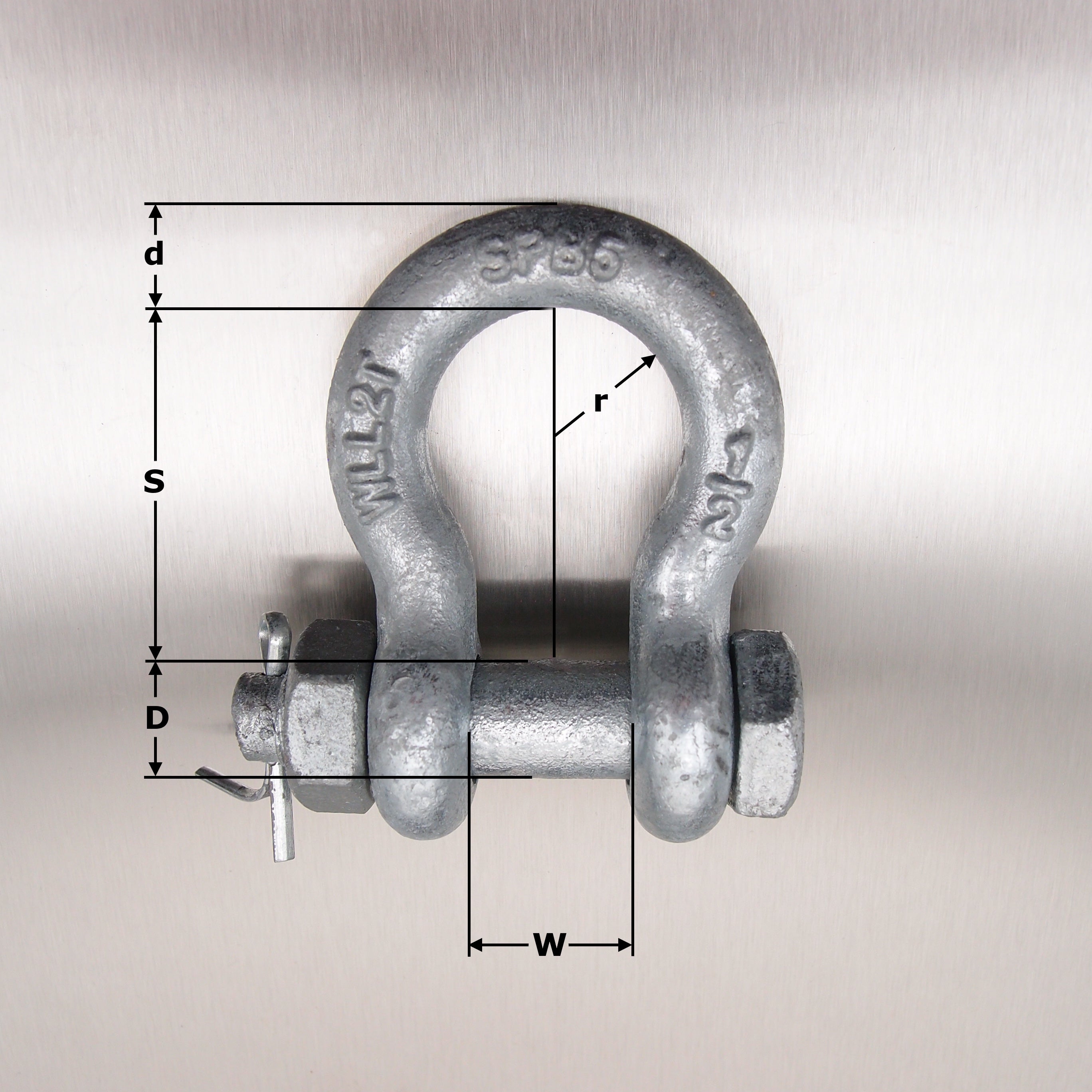

Weight (kg) 2 x r (inches) D (inches) d (inches) D (mm) d (mm) S (inches) S (mm) SWL (tonnes) W (inches) W (mm)
0.089 - 3/8" 5/16" 9.5 8 - 31 0.75 - 13.6
0.162 1 5/16" 7/16" 3/8" 11 10 1 7/16" 38 1 21/32" 16
0.218 1 1/16" 1/2" 7/16" 12.7 11 1 11/16" 43 1.5 23/32" 17
0.335 1 3/16" 5/8" 1/2" 16 12.7 1 7/8" 47 2 13/16" 21
0.674 1 1/2" 3/4" 5/8" - - 2 13/32" - 3.25 1 1/16" -
1.118 1 3/4" 7/8" 3/4" 22 19.7 2 27/32" 72 4.75 1 1/4" 28
1.773 2" 1" 7/8" - - 3 5/16" - 6.5 1 7/16" -
2.353 2 5/16" 1 1/8" 1" - - 3 3/4" - 8.5 1 11/16" -
3.578 2 5/8" 1 1/4" 1 1/8" - - 4 1/4" - 9.5 1 13/16" -
5.120 2 7/8" 1 3/8" 1 1/4" - - 4 11/16" - 12 2 1/32" -
View Cart Checkout Now
0

Total items

£0.00

Product subtotal

VAT and shipping calculated at checkout
View cart
View cart

Service is our priority

VAT invoices are supplied with every order

Tested for Lifting

This product is tested for lifting. Tested products are supplied with relevant test certification. For our lifting hardware this is predominately a Certificate Of Conformity to the Machinery Directive Please note we do not supply 3.1 certification.

Galvanised

Galvanising is a protective layer of zinc that is applied to iron and steel products. Most of our products are electro galvanised which gives a good protective layer and some are hot dipped galvanised which give the best protection from corrosion on iron and steel products.
