Tested
Zinc Plated

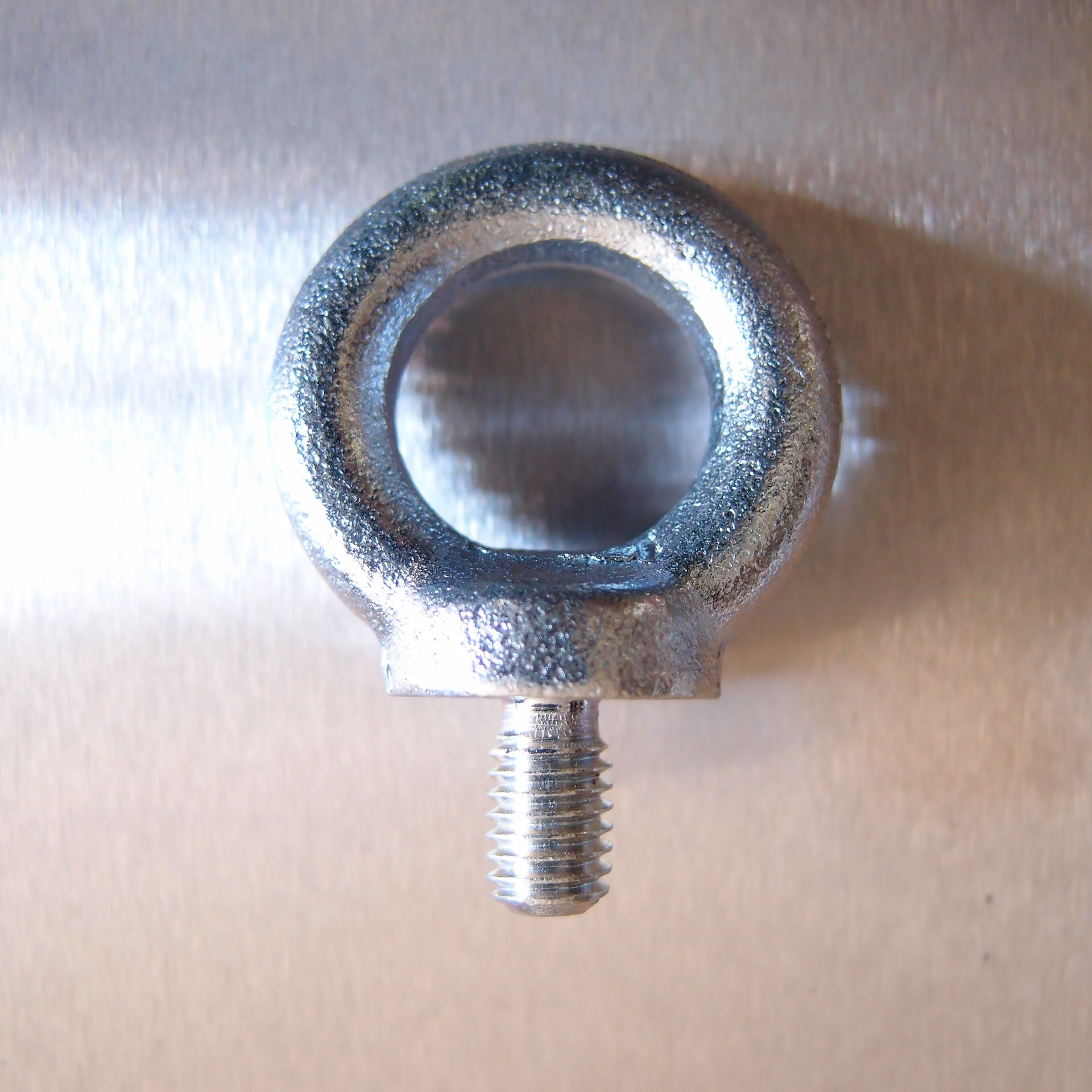

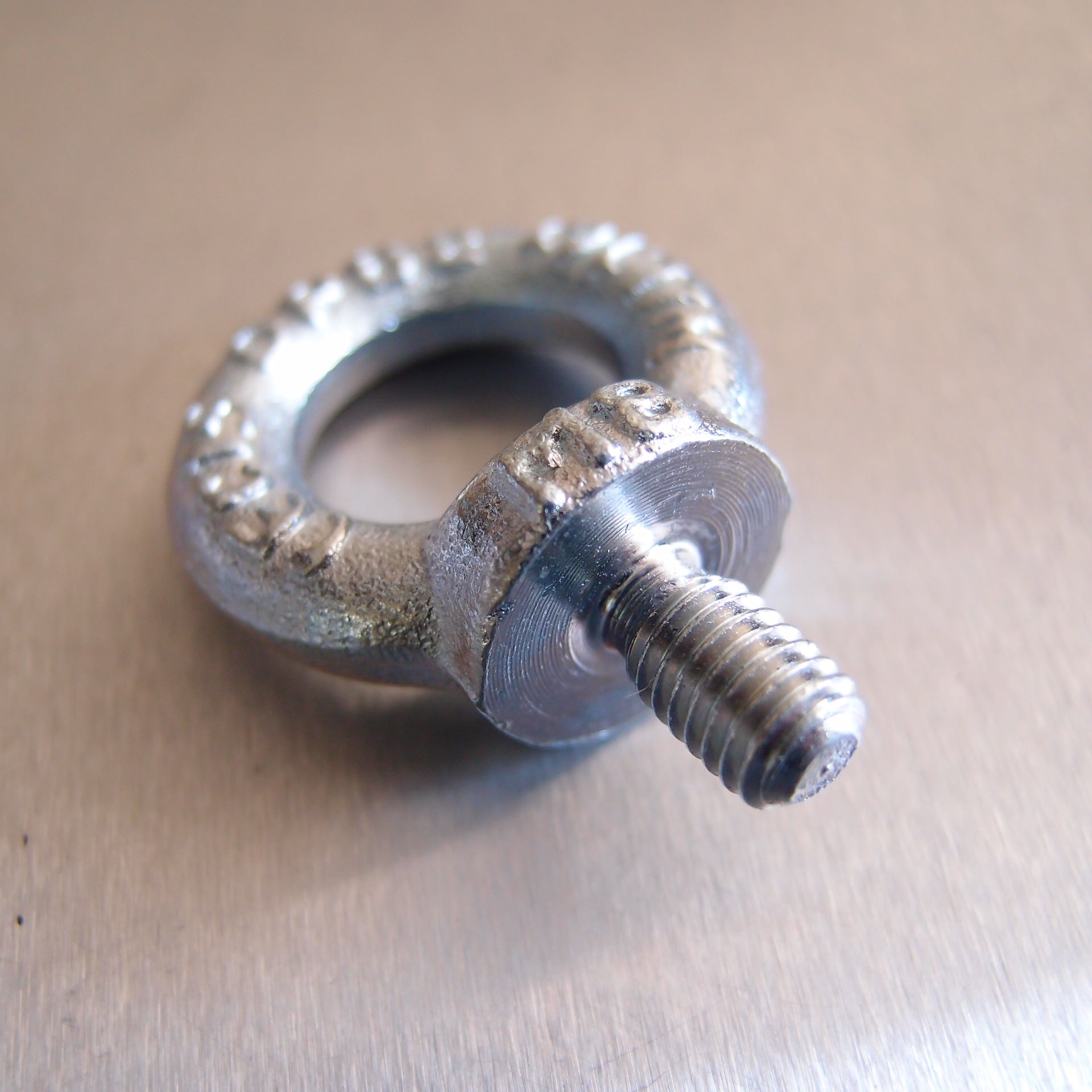

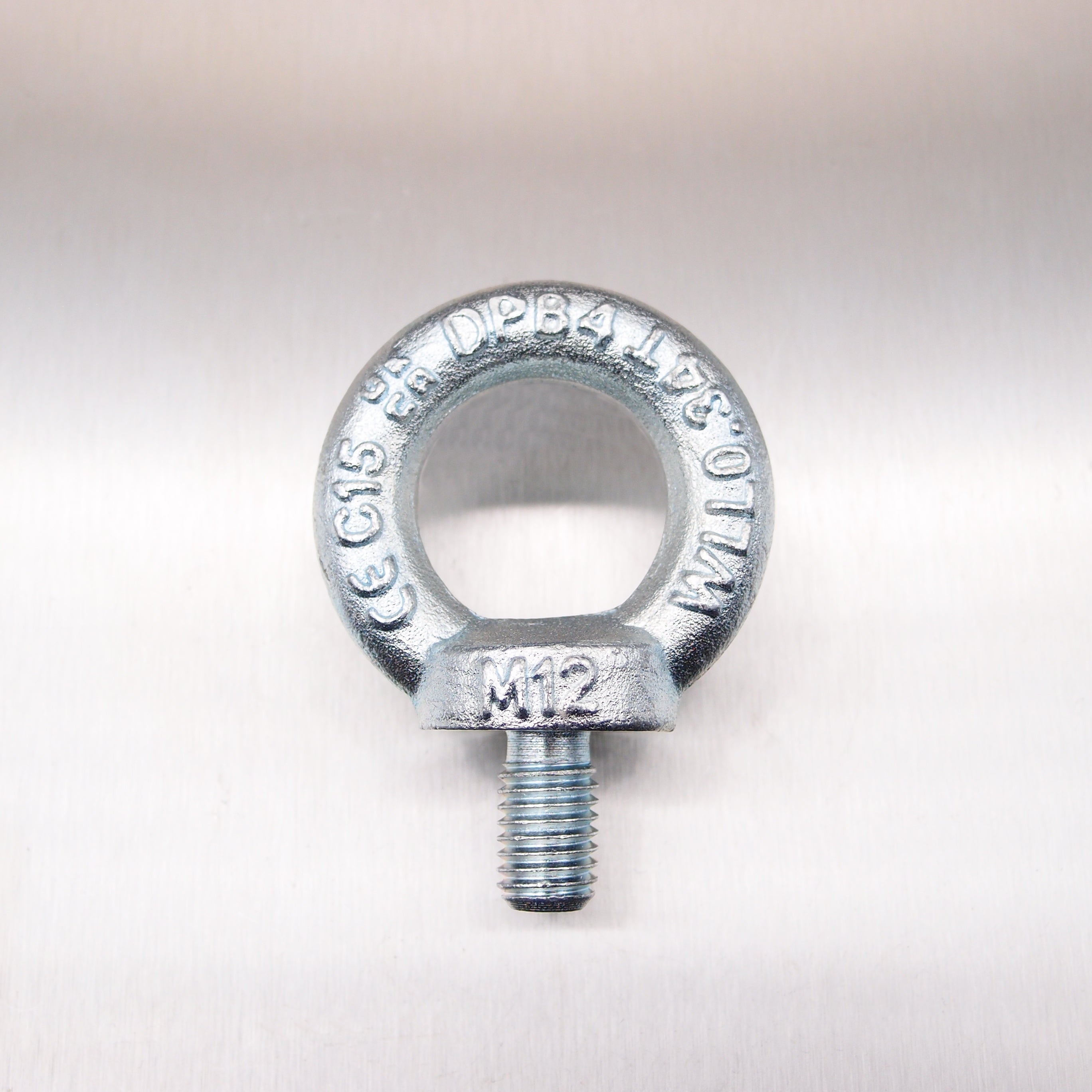

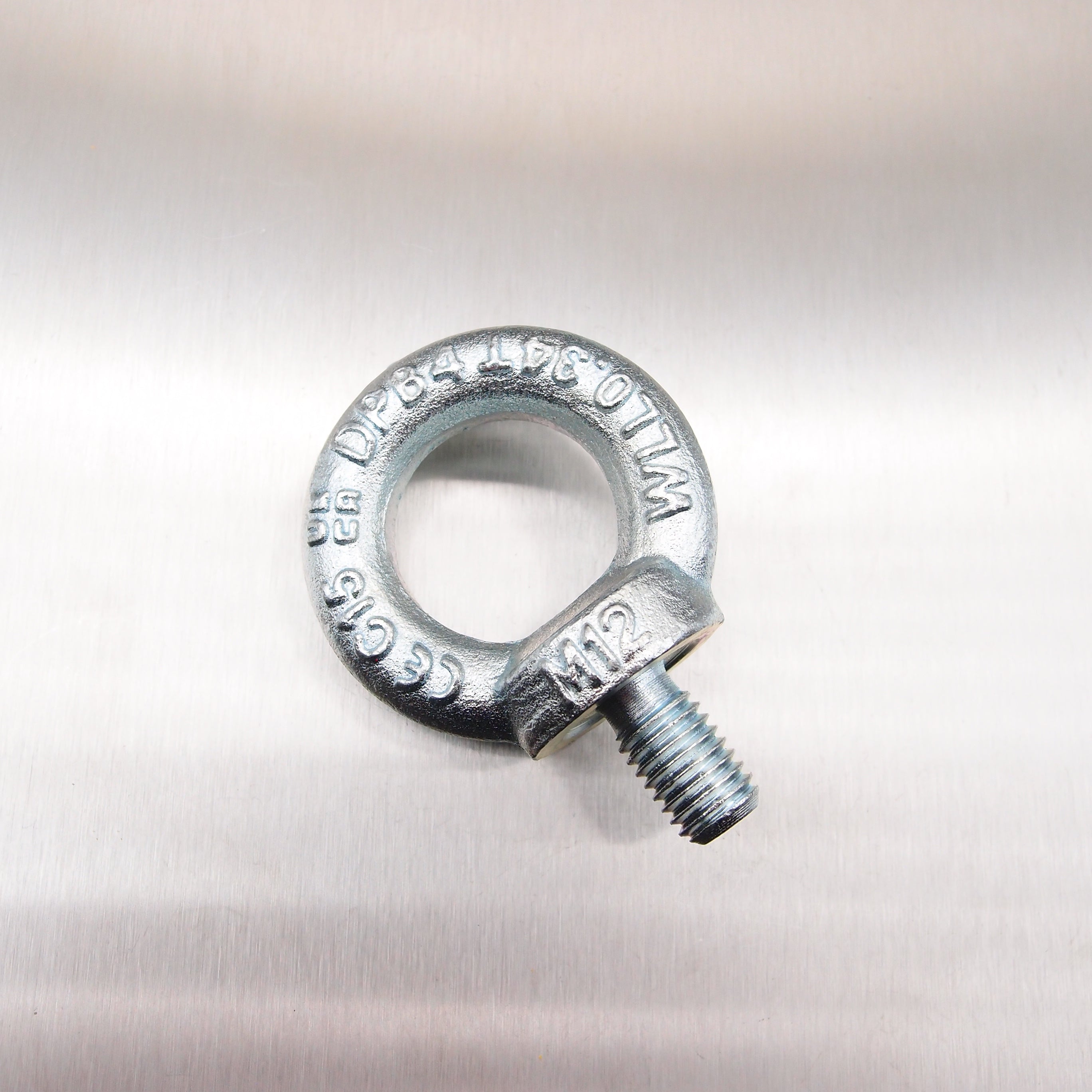

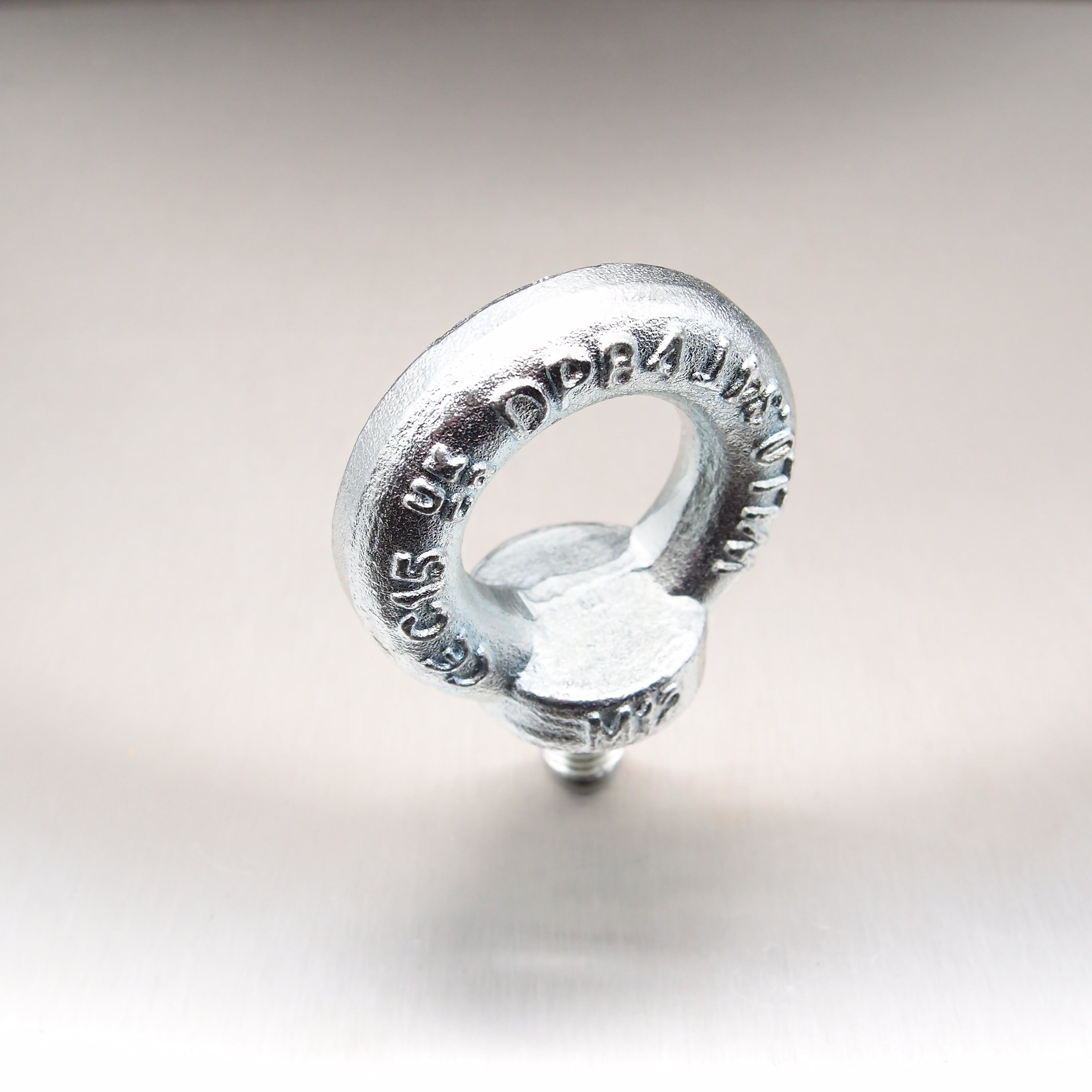

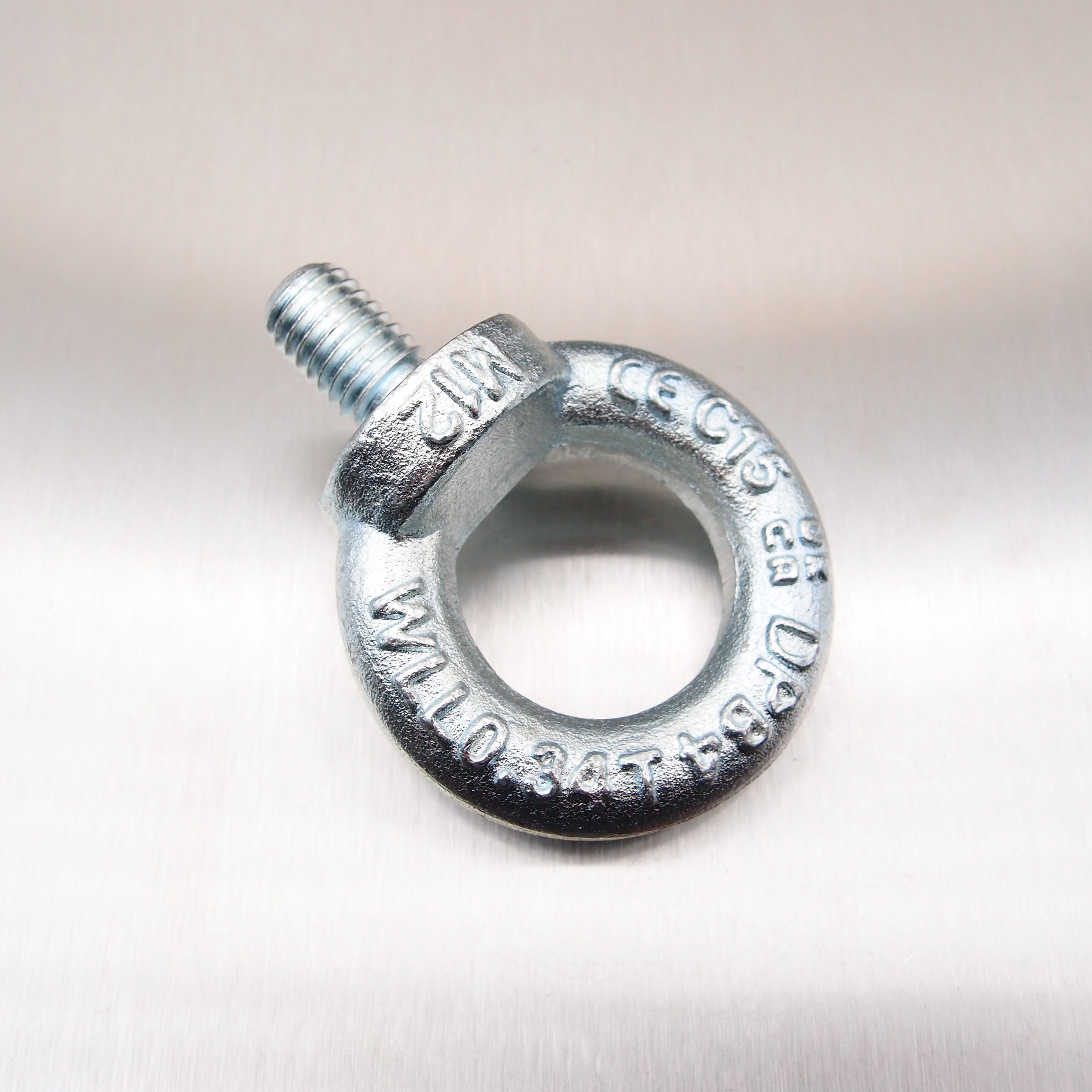

Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED

SKU: DINEBZP06

£0.50 ex. VAT £0.60 inc. VAT
£0.50 £0.60 £0.50 £0.60 inc. VAT ex. VAT
Sale


In stock

  • These DIN 580 collared lifting eye bolts are formed from zinc plated steel, making them strong, durable and corrosion resistant.
  • Available in metric coarse right handed thread in diameters M6 up to M48.
  • These eye bolts are tested for lifting and supplied with relevant certification.
  • Also known as Eye Bolts, Eye-Bolts.
  • Suitable for vertical lift only.



Description

  • These DIN 580 collared lifting eye bolts are formed from zinc plated steel, making them strong, durable and corrosion resistant.
  • Available in metric coarse right handed thread in diameters M6 up to M48.
  • These eye bolts are tested for lifting and supplied with relevant certification.
  • Also known as Eye Bolts, Eye-Bolts.
  • Suitable for vertical lift only.




Shipping & Returns

We offer a variety of different shipping options dependent on weight, postcode and urgency. Please see our Shipping page for further details. Unused goods can be returned to us for a full refund within the terms of our Returns Policy


Support

We hope you will find all the technical information you need on our product pages, but we pride ourselves on our willingness to assist in helping you find the right product for your application and our commitment to having our customers speak to a real person, without having to wait, about any matter regarding your order. Please call us on 01460 220906 or you can contact us here. We are open Monday-Friday 9am-5pm excluding Bank Holidays.

View full details

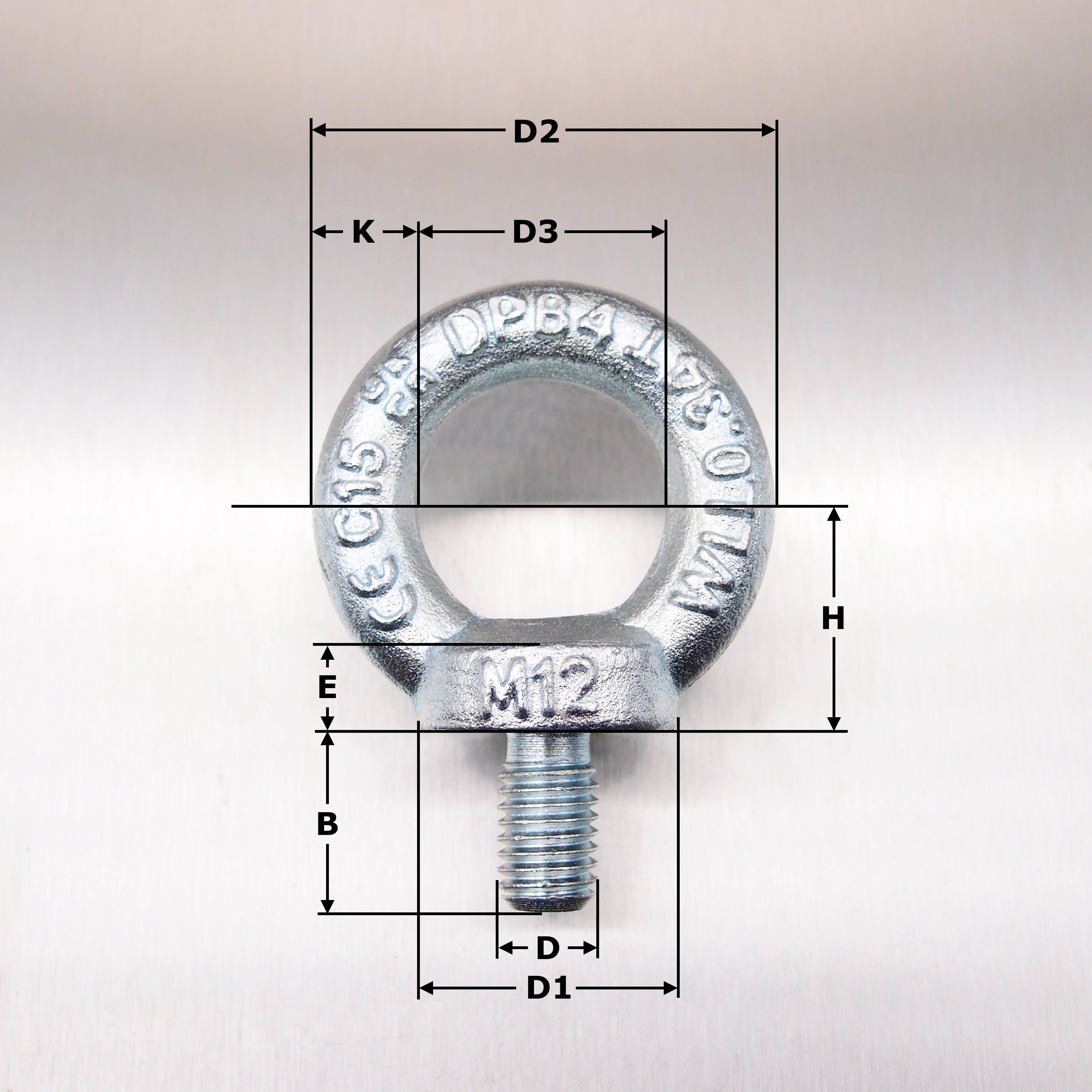

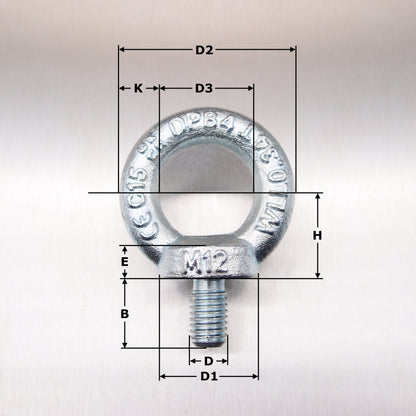

Show Specification Drawing
Show Product Specification

For product specs, scroll the table below horizontally:

Stock Price
(inc. VAT)(ex. VAT) 		Quantity Line total
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M6DINEBZP06
 In stock
£0.50
£0.60
£0.00 £0.00
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M8DINEBZP08
 In stock
£0.52
£0.62
£0.00 £0.00
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M10DINEBZP10
 In stock
£0.68
£0.82
£0.00 £0.00
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M12DINEBZP12
 In stock
£1.08
£1.30
£0.00 £0.00
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M16DINEBZP16
 In stock
£1.86
£2.23
£0.00 £0.00
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M20DINEBZP20
 In stock
£2.26
£2.71
£0.00 £0.00
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M24DINEBZP24
 In stock
£4.88
£5.86
£0.00 £0.00
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M30DINEBZP30
 In stock
£9.48
£11.38
£0.00 £0.00
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M36DINEBZP36
 In stock
£15.32
£18.38
£0.00 £0.00
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M42DINEBZP42
 In stock
£26.26
£31.51
£0.00 £0.00
Lifting Eyebolt - DIN 580 - Zinc Plated Steel - TESTED
M48DINEBZP48
 In stock
£48.39
£58.07
£0.00 £0.00

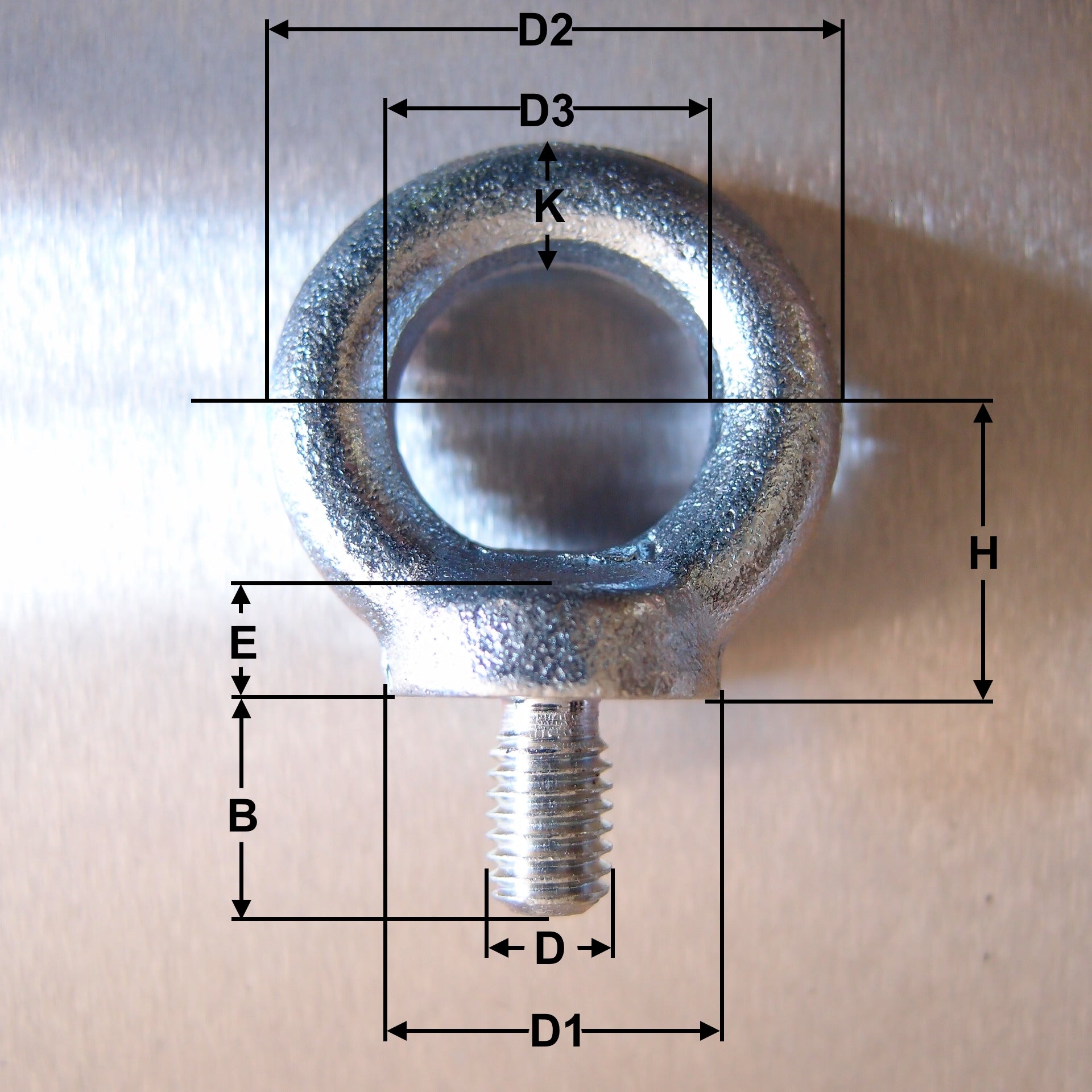

Weight (kg) B (mm) D (mm) D1 (mm) D2 (mm) D3 (mm) E (mm) H (mm) K (mm) SWL (kg)
0.052 13 6 21 37 20 7 18.5 9 70
0.053 13 8 21 37 20 7 18.5 9 140
0.109 17 10 25 45 24 10 23 10 230
0.189 21 12 30 54 29 10 26 12 340
0.286 25 16 36 62 34 12 30 14 700
0.435 30 20 40 72 39 12 35 16 1200
0.816 35 24 50 88 48 15 44 21 1800
1.663 45 30 65 108 59 23 58 25 3600
2.650 54 36 - - 70 - - - 5100
4.139 63 42 85 142 77 28 76 34 7000
6.380 68 48 - - 90 - - - 8600
View Cart Checkout Now
0

Total items

£0.00

Product subtotal

VAT and shipping calculated at checkout
View cart
View cart

Service is our priority

VAT invoices are supplied with every order

Tested for Lifting

This product is tested for lifting. Tested products are supplied with relevant test certification. For our lifting hardware this is predominately a Certificate Of Conformity to the Machinery Directive Please note we do not supply 3.1 certification.

Zinc Plated

Zinc plating is a electro plated layer of zinc which helps form a corrosion preventative layer to the surface. This type of coating is less protective than galvanising but does have the benefit of a smooth semi-shiny finish. This finish is quite often selected for decorative applications.
